Connecting Human Model to CAD Model

Hi everyone,

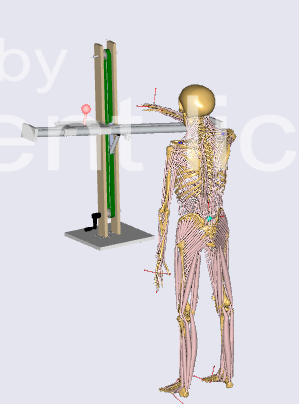

I am relatively new to AnyBody and I am having some trouble connecting my Human Model to my CAD model. I have attached an image of what my model currently looks like, I am just trying to attach the right hand to the handle (highlighted in red) but I am not sure the best way to go about doing so. I tried following the tutorial that is only but I am still quite confused on the best way to go about this. Any guidance would be greatly appreciated.

Best,
Sidney


Hi @SChemini

That looks like a very interesting model!
To connect the hand to the knob you should look into adding a suitable joint between the two.
I don't know if you have already looked at the tutorials given examples of this.

I you haven't I would start with this one that connects a fitness machine to the human model.

In your AMMR there is also a model under Application/Examples/WheelTurn/WheelTurn.main.any that you can look at.

I hope this can bring you forward, otherwise feel free to post again

Best regards,
Bjørn
AnyBody Technology
